Star Metro - Arras Minerals Drills 86.8 Metres @ 1.10 G/T AUEQ from Surface at Berezski East Target - Elemes Project, Kazakhstan

The Elemes project is in the Bozshakol-Chingiz Magmatic arc and is 61 kilometres Southeast of Kaz Mineral's Bozshakol Copper Mine ("Bozshakol"). The Bozshakol mine commenced operations in 2016 and in FY2023 produced 105,000t copper "Cu" & 115,000 oz gold "Au" per annum at US$0.95/lb Cu (net) cash costs. Reported reserves are 1.003Bt @ 0.33% Cu & 0.13 g/t Au.

Highlights

• EL24004: 304.8 m of mineralization grading 0.54g/t gold-equivalent ("AuEq") (0.45 g/t
  Au, 0.07 % Cu starting from 1.2m depth; including:

  • 194.8 m grading 0.69 g/t AuEq (0.59 g/t Au, 0.08% Cu) starting at 1.2m

  • 138.8 m grading 0.89 g/t AuEq (0.78 g/t Au, 0.09% Cu) starting at 1.2m

  • 86.8m grading 1.10 g/t AuEq (0.92 g/t Au, 0.10% Cu) starting at 1.2m

  • 37.8m grading 1.50 g/t AuEq (1.35 g/t Au, 0.13% Cu) starting at 1.2m

  • Deeper zone returned 50m @ 0.45 g/t AuEq (0.36 g/t Au, 0.08% Cu) from 210m depth.


• EL24008: returned 128 m ofmineralizationgrading 0.10g/t AuEq (0.06 g/t Au, 0.03 % Cu) starting at 182 m.

  • Including: 12 m grading 0.20 g/t AuEq (0.14 g/t Au, 0.04% Cu) starting at 232 m

  • & 8 m grading 0.19 g/t AuEq (0.12 g/t Au, 0.05% Cu) starting at 232 m.


• EL24009: 2 m of mineralization grading 1.55 g/t AuEq (1.51 g/t Au, 0.02 % Cu) starting from 99 m.

Tim Barry, CEO of Arras Minerals noted, "We're very excited with these new results from Elemes, particularly with drillhole EL24004 intersecting a thick zone of continuous gold mineralization starting from surface. Most notably, it encountered 194.8 meters grading 0.69 g/t AuEq, including a higher-grade interval of 37.8 meters grading 1.50 g/t AuEq. This mineralization is hosted in altered and locally brecciated propylitic altered diorites containing 1-3% pyrite and pervasive quartz magnetite veining. This hole has significantly advanced our understanding on the controls on gold mineralization at Berezski East and suggests that it may host a significant open pitable gold deposit. We're also very pleased with hole EL24009 that explored the K-Ozek target and intersected several gold-bearing quartz veins suggesting that this target has excellent potential to host multiple high-grade low sulphidation epithermal veins."

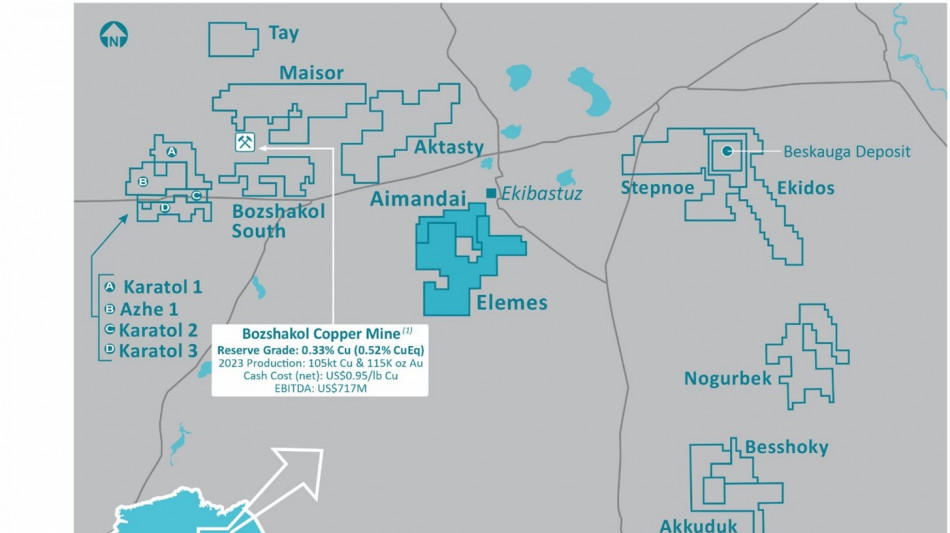

Figure 1. Arras Minerals Elemes Project & additional project portfolio located in Pavlodar, Kazakhstan

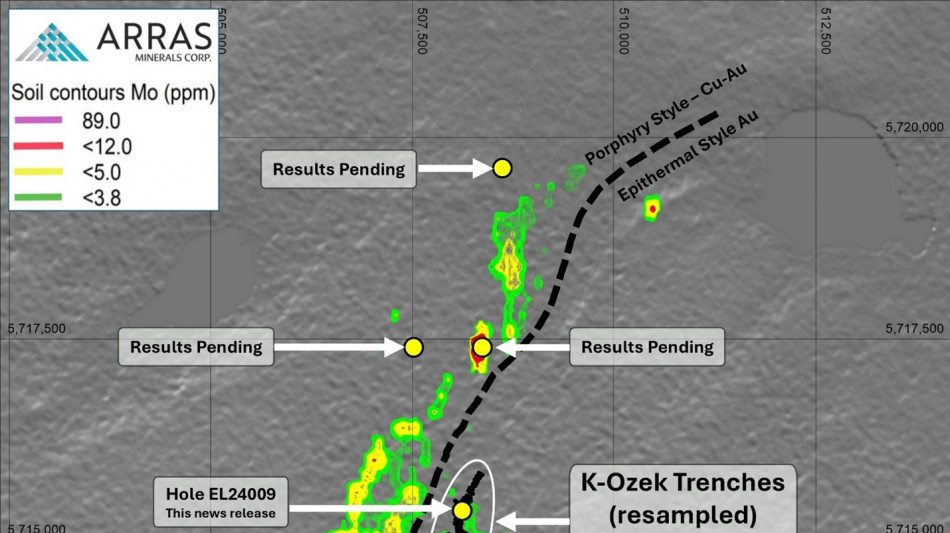

Figure 2. Molybdenum "Mo" soil anomaly map highlighting the locations of drill holes completed by Arras in 2024. The map also shows the location of the K-Ozek trenches, with results previously announced by Arras in July 2023. The geological section line between drill holes EL24001 and EL24004 shown in this news release, is also displayed as the dashed line A-A'.

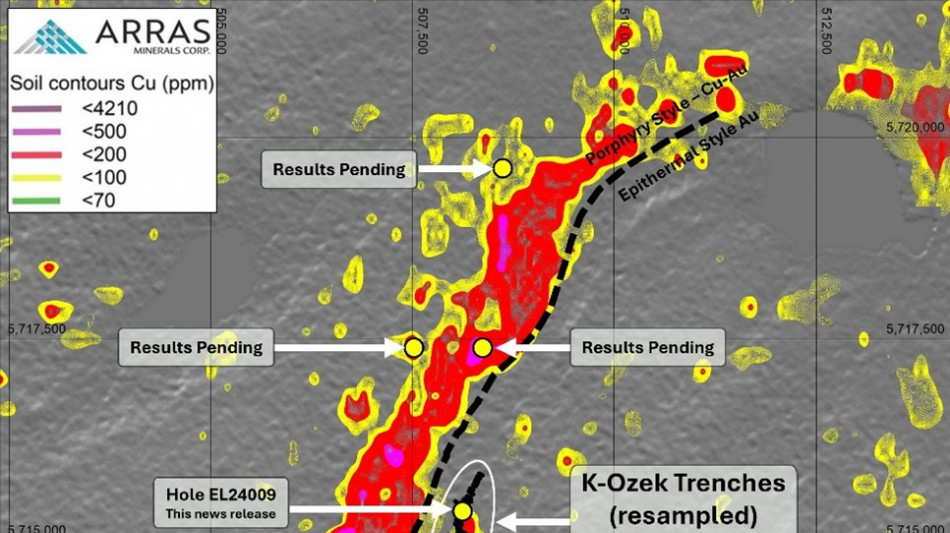

Figure 3. Arsenic and Copper soil anomaly map highlighting the locations of drill holes completed by Arras in 2024. The map also shows the location of the Soviet-era K-Ozek trenches, with results previously announced by Arras in July 2023. The geological section line between drill holes EL24001 and EL24004 shown in this news release, is also displayed as the dashed line A-A'.

Darren Klinck, President of Arras Minerals commented, "Results from the Elemes Phase 1 drill program continue to deliver positive results with the most recent hole EL24004 at Berezski East demonstrating broad zones of gold mineralization. This is encouraging and highlights the significant potential for both copper and gold that exists at Elemes."

Table 1. Summary results from holes EL24004, EL24008 and EL24009

Notes: Copper Equivalent ("CuEq") grades reported for the drill holes at Elemes were calculated using the following formula: CuEq % = Copper (%) + (Gold (g/t) x 0.9167) + (Silver (g/t) x 0.0100) + (Molybdenum (ppm) x 4.2857).AuEq grades reported for the drill holes at Elemes were calculated using the following formula: AuEq g/t = Gold (g/t) + (Copper (%) x 1.090858) + (Silver (g/t) x 0.0109) + (Molybdenum (ppm) x 4.6751). Assumptions used for the copper and gold equivalent calculations were metal prices of US$3.50/lb. Copper, US$2,200/oz Gold, US$24/oz Silver, US$15/lb. Molybdenum, and metallurgical recoveries were assumed to be 100%.

Table 2. Drill-hole locations

Drill-Hole Summaries

Drill hole EL24004 was designed to test a small Cu in soil anomaly, and to provide additional information on the exploration target identified from historic drilling. The hole was drilled to 450m depth. The hole was collared in strongly argillic altered Diorites and at 30m depth passed into propylitic altered diorites. Mineralization is represented predominantly by veins of quartz and quartz-pyrite occasionally carrying chalcopyrite. Pyrite and chalcopyrite dissemination is in traces if any. Magnetite and quartz-magnetite veins and veinlets are prevailing almost through the entire drill hole.

Drill hole EL24008 was drilled to explore a coincident geochemical (Cu/Mo soil), magnetic and IP anomalies. The hole was drilled to 323.4m depth, and intersected polymictic andesite breccia cut by several feldspar-andesite dykes. Alteration is dominated by argillic-phyllic alteration that is by depth gradually weakening and transiting to Propylitic (chlorite-hematite) alteration. Mineralization is mainly pyrite in dissemination up to 2% through entire core and 5% in the interval from 113m to 200m. Veining is weak locally moderate carbonate-pyrite and pyrite veins.

Drill hole EL24009 was designed to test an area where Arras has mapped and sampled several Au-Ag-rich low sulphidation quartz veins. The hole was drilled to 175m and was collared in argillic altered Andesite and from 21.5m continued through phyllic/argillic altered diorite with alteration getting weaker by depth with remanent Propylitic alteration. Mineralization was mainly narrow zones of veining and silicification and disseminated pyrite.

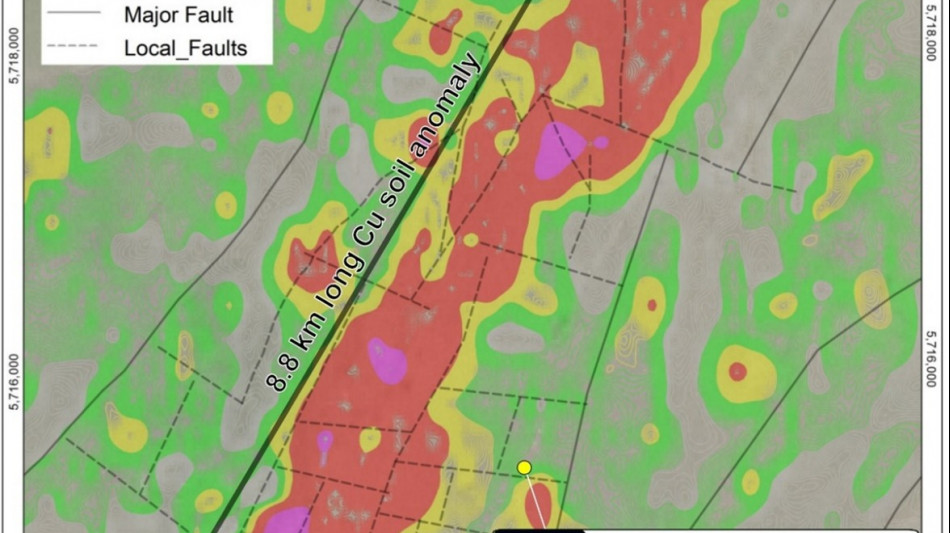

Figure 4. Plan map, showing 2024 drill-hole locations, overlain on copper soil anomaly, Elemes Project.

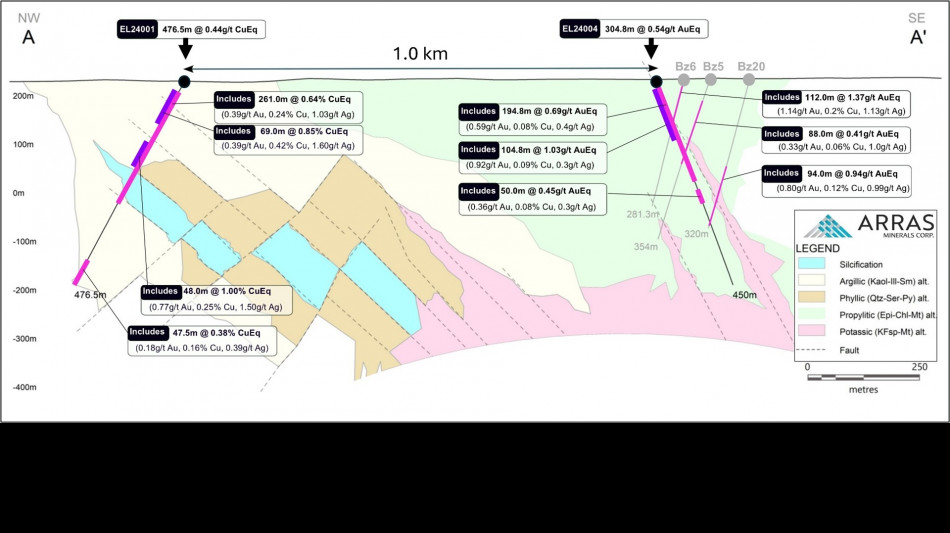

Figure 5. Cross-section looking NE showing key intercepts in drill-holes EL24001 and EL24004. The cross-section demonstrates a strong porphyry-epithermal style of alteration hosting consistent mineralization. 1.0 Km distance between drill holes EL24004 and EL24001

K-Ozek Trenches: The gold-silver-tellurium mineralization at K-Ozek is hosted in a zone of quartz veining (individual veins between 0.5 to 1 m width), that display typical low sulphidation textures including crustiform banding, euhedral crystal infill of vein voids, and bladed textures (quartz after calcite) (Figure 7 below). A zone of strong silicification and argillic (kaolinite-illite-quartz) alteration surrounds the quartz veins.

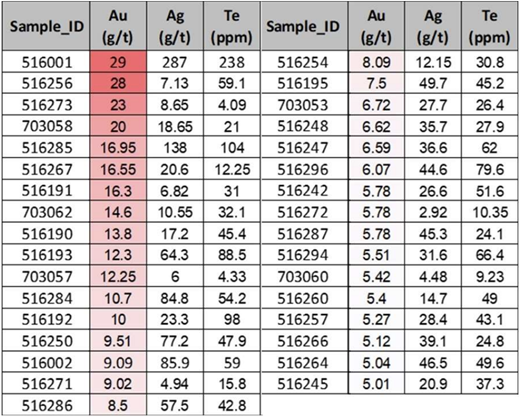

Table 3. Grab samples with over 5.0 g/t Au from the K-Ozek target

Figure 6. Plan map of the K-Ozek target showing location of drill-hole EL24009, mapped veins and grab sample locations.

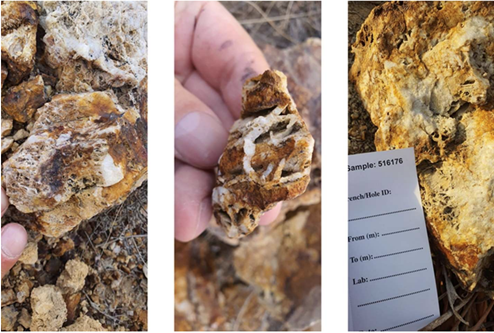

Figure 7. Samples from the K-Ozek epithermal veins from historic soviet trenches, K-Ozek target, Elemes project.

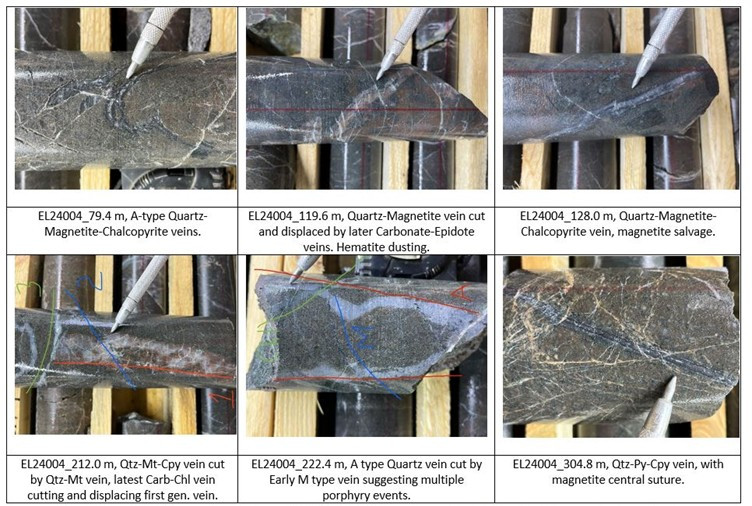

Figure 8. Drill core photos from hole EL24004 showing lithology, vein styles and mineralization.

Elemes Project: Drilling commenced in September 2024 and the Phase 1 program was completed in late December 2024. This program of approximately 4,000 meters of diamond drilling has generally focused on priority targets at Berezski Central, Berezski East, Q-Gorka and K-Ozek targets. These targets were identified following two field seasons of comprehensive exploration work at the Elemes Project, including airborne magnetic and Pole-Dipole Induced Polarization geophysical surveys, as well as extensive soil sampling and mapping. In addition, some historical drill holes from the Berezski East and Q-Gorka targets were re-assayed with those results reported in January 2024 (see Arras new releases January 8 & 22, 2024).

QUALITY ASSURANCE, QUALITY CONTROL AND QUALIFIED PERSON

Lengths are drill intersections and not necessarily true widths. True widths cannot be calculated at this time due to the unknown geometry of the mineralization. Drill intersections have been independently selected by Arras Minerals. Drill composites have been independently calculated by Arras Minerals. The geological interpretations in this news release are solely those of the Company. The locations and distances highlighted on all maps in this news release are approximate.

Historical holes Bz6 & Bz20 shown in Figure 5 were re-assayed and reported in the Company's news release January 22, 2024. Bz5 also shown in Figure 5 was not re-assayed but is included in the figure for completeness.

The scientific and technical disclosure for this news release has been prepared under supervision of and approved by Matthew Booth, Vice President of Exploration, of Arras Minerals Corp., a Qualified Person for the purposes of NI 43-101. Mr. Booth has over 19 years of mineral exploration experience and is a Qualified Person member of the American Institute of Professional Geologists (CPG 12044).
